Description

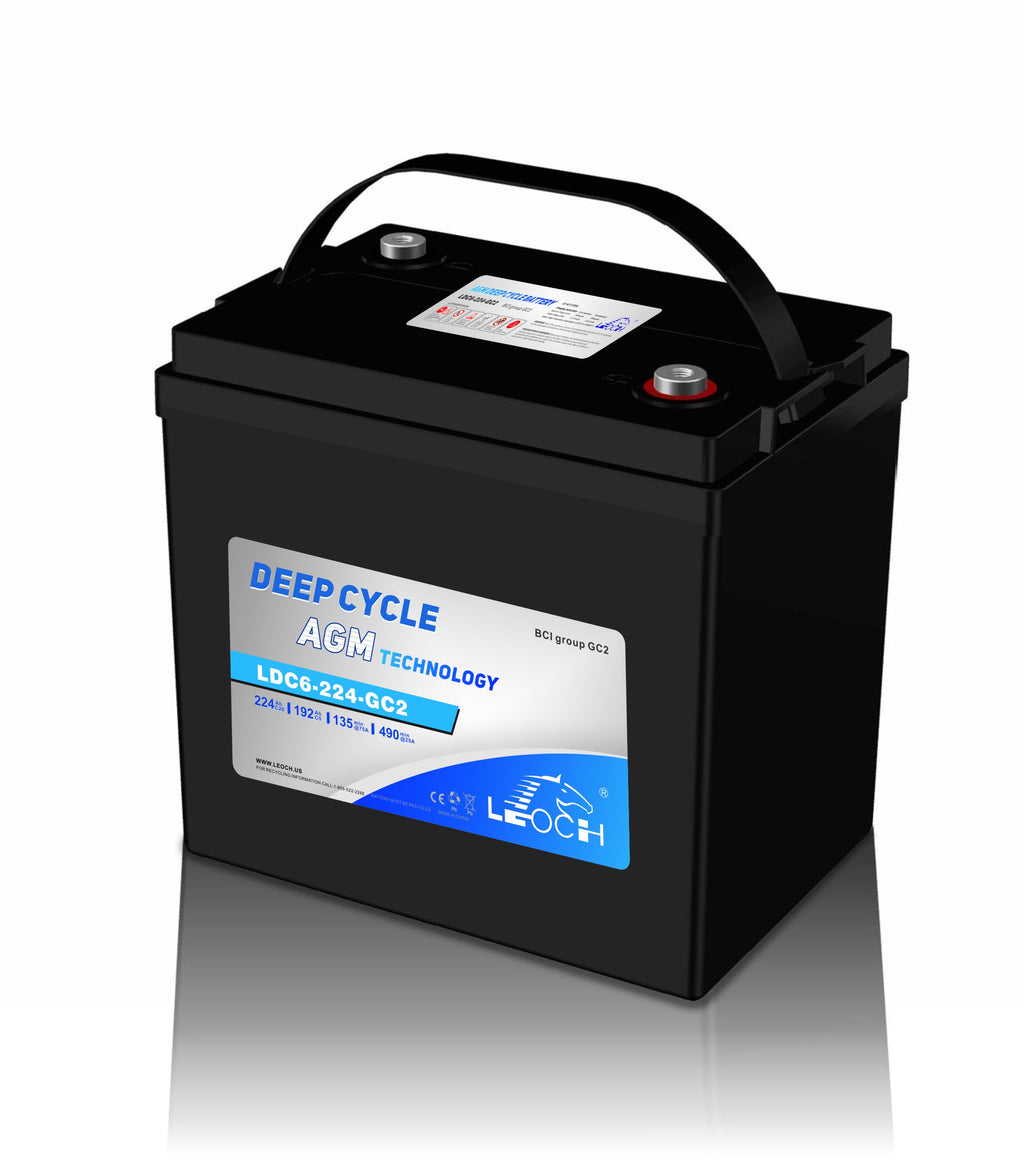

Some 6V batteries lose height to a pair of tall terminal posts; the Leoch LDC6-224-GC2 does not. Its T11 (M8) terminals sit nearly flush, so the case stands 9.72 inches and the whole battery only 9.96 inches. That makes it a sensible choice for a compartment with a low lid, where a taller 6V block with posts on top would not close.
Capacity is 224Ah at the 20-hour rate, 192Ah at 5 hours and 173Ah at 3 hours. The footprint is the usual 260 by 180 mm, and weight is 67.2 lbs. Look at the next size down, the LDC6-210-GC2: same footprint, but its case is 5 mm taller and it stands 21 mm taller over the terminals, for 14Ah less at the 20-hour rate. So the 224 is both the lower and the larger-capacity battery of the two.
The trade for that low profile is headroom you may be leaving unused. If your tray allows about 15 mm more height, the LDC6-265-GC2 or LDC6-270 gives roughly 45Ah more at the 20-hour rate from an almost identical footprint.
Specifications
| Model | LDC6-224-GC2 |
| Voltage | 6V |
| Capacity @ 20hr | 224Ah |
| Capacity @ 5hr | 192Ah |
| Capacity @ 3hr | 173Ah |
| Length | 10.24in (260mm) |
| Width | 7.09in (180mm) |
| Container Height | 9.72in (247mm) |
| Height over Terminals | 9.96in (253mm) |
| Weight | 67.2 lbs (30.5kg) |
| Terminal | T11 (M8), 97.35–130.0 in-lb (11.0–14.7 Nm) |
| Case Material | ABS |
| Operating Temperature | Discharge -20 to 55°C, charge 0 to 40°C, storage -15 to 40°C |
