Description

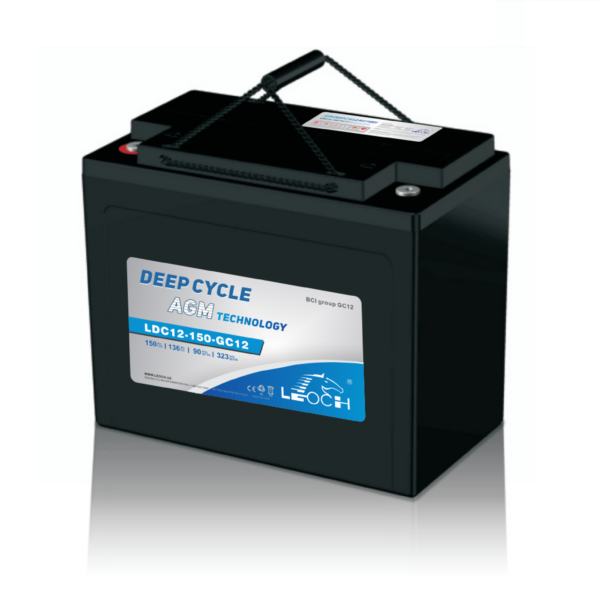

Compare the Leoch LDC12-150-GC12 with the LDC12-145 and a pattern appears: on paper they are nearly the same battery, yet the 150 pulls ahead as soon as you discharge faster. At the 20-hour rate the gap is only 2Ah (150 against 148), but at 5 hours it is 136Ah against 122Ah. For machines that draw hard through a shift rather than trickling for a day, that 5-hour figure is the more honest number to shop on.
It also manages this in a squatter case: 12.87 by 7.09 inches and 10.79 inches tall, versus 11.26 inches over the terminals on the 145. Weight is essentially a tie at 93.0 lbs. Reserve capacity runs 323 minutes at 25A, 120 minutes at 56A and 90 minutes at 75A, and the terminals are T11 (M8).
Because this is a single 12V block, a 24V machine needs two of them and a 36V machine three, which keeps cabling simple compared with a bank of 6V units. The drawback is that each block is a 93-pound, one-piece replacement.
Specifications
| Model | LDC12-150-GC12 |
| Voltage | 12V |
| Capacity @ 20hr | 150Ah |
| Capacity @ 5hr | 136Ah |
| Capacity @ 3hr | 125Ah |
| Reserve Capacity | 323 / 120 / 90 min (25A / 56A / 75A) |
| Length | 12.87in (327mm) |
| Width | 7.09in (180mm) |
| Container Height | 10.79in (274mm) |
| Height over Terminals | 10.79in (274mm) |
| Weight | 93.0 lbs (42.2kg) |
| Terminal | T11 (M8), 97.35–130.0 in-lb (11.0–14.7 Nm) |
| Case Material | ABS |
| Operating Temperature | Discharge -20 to 55°C, charge 0 to 40°C, storage -15 to 40°C |
