Description

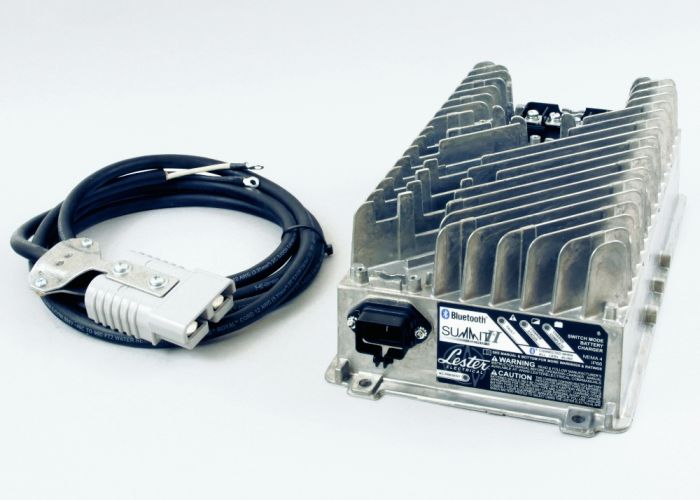

One housing, three battery voltages. The Lester Summit II 1050W detects the voltage of the pack it is connected to and delivers 24, 36, or 48 volt charging accordingly, which is useful if you service a mix of machines. This listing is the 36 volt, 25 amp configuration, supplied as a portable unit with the 175 connector named in the product title.
The enclosure is sealed to IP66 / NEMA 4 and cooled by natural convection with no fan, so there is no intake to clog with dust or splash. The charger accepts 100 to 240 VAC, single phase, at 50 to 60 Hz, and Lester rates its efficiency above 91 percent. Its protections include reverse polarity, output short circuit, over and under voltage, and wrong-battery-voltage detection.
Lester lists the Summit Series II as compatible with wet, AGM, and gel lead-acid as well as lithium and custom profiles. The charger you receive is set up for your battery profile, so confirm the chemistry and pack voltage of your machine before ordering. It also offers Bluetooth connectivity and status LEDs for charge complete, charging, AC present, and fault.
Specifications
| Manufacturer | Lester Electrical |
| Series | Summit Series II 1050W |
| Output (this configuration) | 36 V DC, 25 A |
| Rated power | 1050 W |
| AC input | 100-240 VAC, 50-60 Hz, single phase |
| Maximum AC input current | Under 12 A |
| Peak efficiency | Over 91% |
| Battery types (series) | Lead-acid (wet, AGM, gel), lithium, custom |
| Enclosure rating | IP66 / NEMA 4 |
| Cooling | Natural convection, no fan |
| Operating temperature | -25 to 60 C (-13 to 140 F) |
| DC connector | 175 (per product title) |
