Description

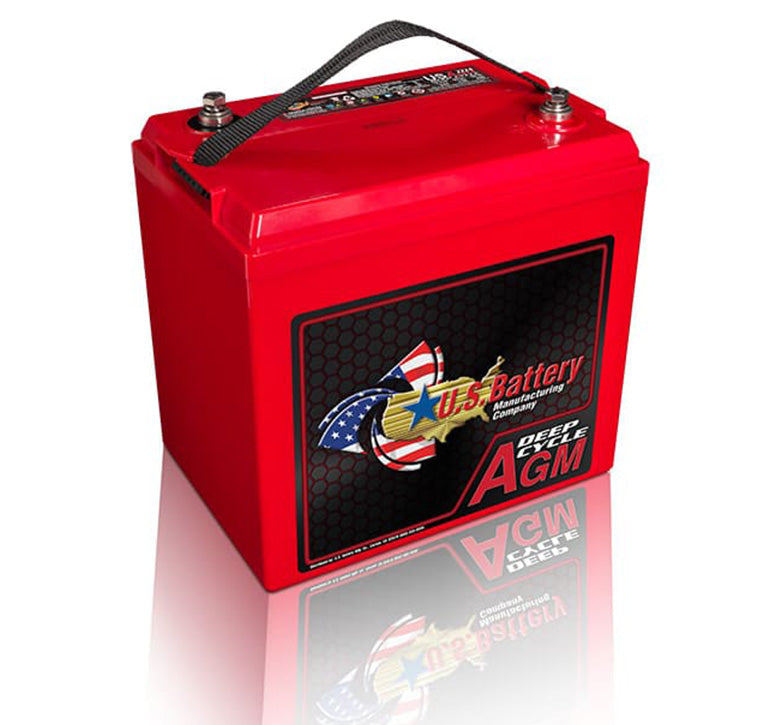

The US Battery US AGM 2224 is one of U.S. Battery's most popular 6V AGM deep-cycle batteries, delivering 224Ah in the same GC2 case size as the US AGM 2000 with a boost in capacity and reserve runtime. It's built for golf carts, RVs, marine applications, and cleaning equipment that need sealed, maintenance-free power in a series-connected 6V pack.
The extra 14Ah over the AGM 2000 comes packed into the identical case footprint, so it's a straightforward upgrade if you're building a bank and want more runtime without changing your battery bay's dimensions. Heavy-duty alloy grids resist corrosion over repeated cycling, and the sealed case eliminates watering and leak risk entirely.
Why choose the US AGM 2224
- 224Ah of deep-cycle capacity — more runtime than the AGM 2000 in the same case size
- F14 terminal for straightforward wiring into existing 6V packs
- Same footprint as the AGM 2000 — an easy upgrade path without resizing the battery bay
- Sealed, non-spillable AGM chemistry safe for enclosed compartments
Specifications
| Model | US AGM 2224 |
| Voltage | 6V |
| Capacity (20HR) | 224Ah |
| Capacity (5HR) | 190Ah |
| Reserve Capacity @75A | 135 min |
| Reserve Capacity @56A | 188 min |
| Reserve Capacity @25A | 490 min |
| Length | 10.2in (260mm) |
| Width | 7.09in (180mm) |
| Height | 9.9in (252mm) |
| Weight | 69.4 lbs (31.5kg) |
| Terminal | F14 |
| Case Material | ABS, Heat Sealed |
| Battery Type | Sealed AGM, Valve-Regulated |
Backed by U.S. Battery's manufacturer warranty. Upgrading from the AGM 2000? The F14 terminal and case dimensions match, so it's a straightforward swap.
