Description

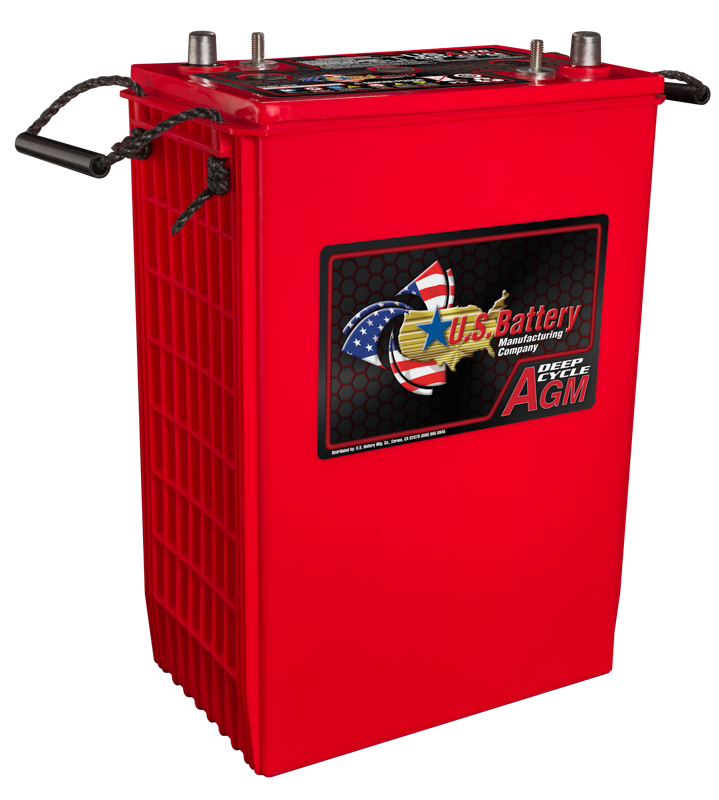

The US AGM L16 stands 16.65 inches tall, the highest case in U.S. Battery's AGM range, and that height is where its capacity comes from: 414Ah at the 20-hour rate and 360Ah at five hours. Make sure your compartment clears nearly 17 inches before you commit.
Published discharge times are 275 minutes at 75 amps, 390 at 56 amps and 984 at 25 amps. At 126 pounds it weighs 20 pounds more than the shorter US AGM 305 (105.8 lbs, 340Ah), in return for 74Ah more at the 20-hour rate. Both share an 11.61 by 7 inch footprint, so the choice comes down to vertical space and how much runtime you want per battery.
U.S. Battery tags this model for floor machines, floor scrubbers, scissor lifts and energy storage. It uses a heat-sealed polypropylene case, BCI group 903, with dual terminals. Four in series give 24V, six give 36V and eight give 48V.
Specifications
| Model | US AGM L16 |
| Voltage | 6V |
| Capacity @ 20hr | 414Ah |
| Capacity @ 5hr | 360Ah |
| Minutes of Discharge @ 75A | 275 |
| Minutes of Discharge @ 56A | 390 |
| Minutes of Discharge @ 25A | 984 |
| Length | 11.61in (295mm) |
| Width | 7in (178mm) |
| Height | 16.65in (423mm) |
| Weight | 126 lbs (57kg) |
| Terminal | Dual |
| BCI Group | 903 |
| Case Material | Polypropylene, heat sealed |
