Description

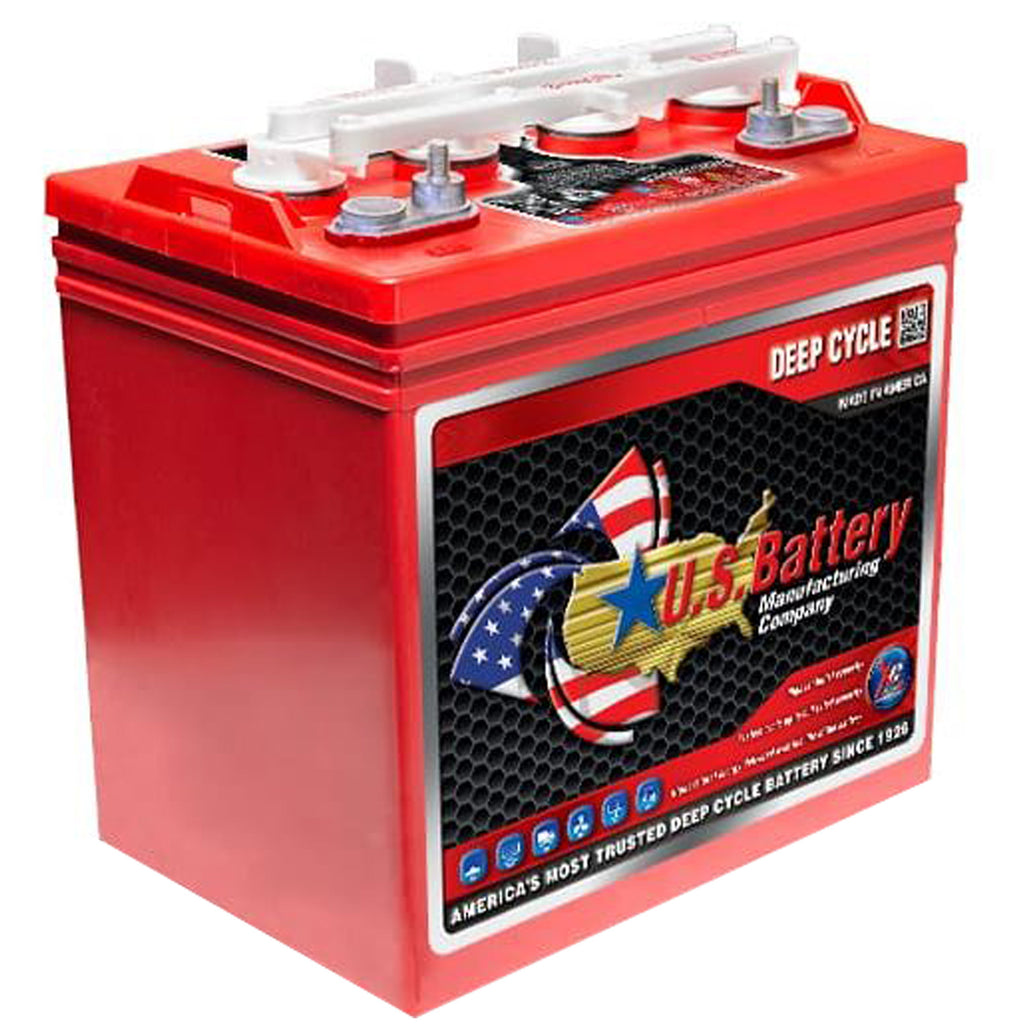

The US Battery US8VGC-XC2 is an 8-volt, 170Ah flooded lead-acid battery in U.S. Battery's GC8 case — the standard size for 48V golf cart and floor-equipment packs (six 8V batteries wired in series). It's built for fleets that already run flooded batteries and are comfortable with a watering routine in exchange for a lower cost per battery.
U.S. Battery's XC2 formulation and Diamond Plate construction are aimed specifically at getting flooded batteries to full rated capacity faster than older flooded designs — fewer break-in cycles before the battery hits its stride, which matters for a fleet where downtime during break-in adds up across six batteries per cart. The charge efficiency design also meets California Energy Commission combined charger/battery requirements.
US8VGC-XC2 Specifications
- BCI Size: GC8
- Voltage: 8-Volt Deep Cycle Golf
- Case material: Polypropylene / Heat Sealed
- 20 Hour Rate: 170Ah
- Minutes of Discharge @ 56 Amps: 118
- Minutes of Discharge @ 25 Amps: 325
- Length: 10.23in (260mm)
- Width: 7.12in (181mm)
- Height: 11.25in (286mm)
- Weight: 62 lbs
Flooded construction requires periodic watering and upright mounting. Building or replacing a full 48V pack? Contact us and we'll help confirm quantity and fit.
