Description
Description:

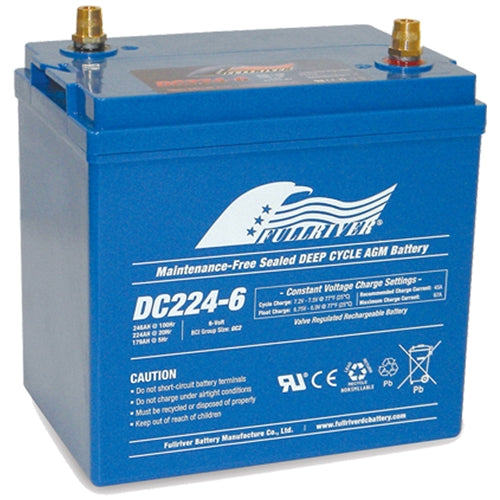

Fullriver DC224-6 AGM Deep Cycle Battery Features:
• Maintenance-free, spill proof, non-hazardous, DOT, IATA, ICAO and IMDG approved as safe for land, air and sea transportation, evironmentally friendly
• High capacity and long life
• True deep cycle construction for long life
• Optimum strength, superior corrosion resistance and good deep discharge recovery
• Enhanced electrolyte retention maximizes capacity
• Good contact between electrolyte and plates for better performance
• Rugged construction, shock and vibration resistant
• Safe operation of batteries
• Superior conductivity
• Sealed to prevent acid leakage

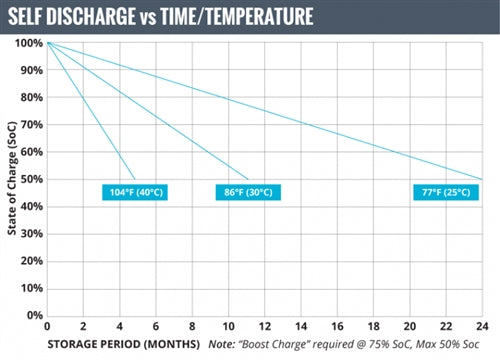

• Low Self Discharge Rate At 1% Per Month, Significantly longer shelf life than conventional wet batteries
• Low Internal Resistance, Faster recharge time than convential wet batteries
• Ensures fully formed, voltage matched plates
• 10 Day Plate Curing Process
• Certifications & Industry Standards Include ISO9001, UL, CE, TUV, DIN, BCI, & JIS
• Available In All Standard Industry Sizes & Capacities
Fullriver DC224-6 AGM Deep Cycle Battery Charging Instructions
Boost charge batteries using a regulated constant potential charger, such that the output is 14.1 to 14.4 volts (for 12 volt batteries). The batteries will be fully charged when the current drops to approximately 0.5 amperes for one hour
Fullriver DC224-6 AGM Deep Cycle Battery Specifications:
•�Voltage: 6V
•�Amperage: 224Ah
•�CA / MCA: 1080
•�CCA @ 0 degrees: 900
•�Terminal Type: M8-TP08
Specifications
Brand: Fullriver
Rechargeable: Yes
Output Voltage: 6V
Amperage: 224Ah
Chemistry: AGM

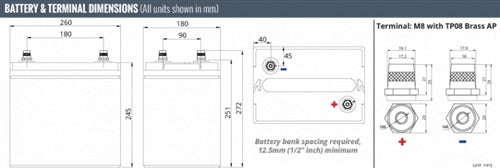

Length: 10.24"
Height: 9.88"
Width: 7.09"
Terminal Type: M8-TP08 Terminal
CCA: 900
CA: 1080
Compatibility
Clarke Industries Inc.: 26i, 32i, I-24
Crown: CR-225
Crown Industrial Trucks: 15B, 15M, 20M, WP2020
Direct Power: SG-3-S/UT
Douglas: GC-110
Dyno Battery: GC2c
E-Z-Go: 1000E, 800E, 875AE Ambulance, Eagle SGC, Industrial 640, Industrial 800E, Industrial 835, Industrial 875E, Industrial 875PE, Industrial 881E, Shuttle 952E, Shuttle 954E, Shuttle 955E, Shuttle 956E, Shuttle 957E, Shuttle TXT 2+2, Shuttle TXT4, Shuttle TXT6, TXT, TXT Freedom LE, TXT Freedom SE
East Penn (Deka): GC15P
Exide: E3600
Genie Industries: GR-12, GR-15, GR-16, GR-20, GR-8, GS-1530, GS-1930, GS-2, GS-2032, GS-2046, GS-2632, GS-2646, GS-2668RT, GS-3232, GS-3246, GS-3268RT, TMZ-34/19, TMZ-50/30, TZ-34/20, TZ-50
Grove Manlift: SM2232E, SM2532, SM2632E, SM2646E, SM3160E
Interstate: U2200
Interstate Batteries: U2200
JH Global Services: JHG48-4, JHG48-6, STAR 48-6L, STAR 48-6SF, STAR-B48-8, STAR48-4L
JLG Industries Inc.: 1230ES, 1532E, 1932E, 2030ES, 2033E, 2046E, 2630ES, 2646E, 2685E, 3246ES, NLI, SPN16-10, SPN20-7.5, SPW19-15, SPW24-7.5
John Deere: E-Gator
Kent/Euroclean: 35R, Blue 32, KA-200BST, KA-201B, KA-261, KA-262B, KA-266EB, RoboKent Scrubber Vac, RoboKent SweeperVac, SelectScrub 20B, SelectScrub 20BT, Stainless Steel Model 20, Stainless Steel Model 26
Mayville Engineering: 1532ES, 1932ES, 2033ES, 2548HT, 3068ES, Hite-Master
Minuteman International Incorporated: 1000B, 1100, 1200B, 24B, 320, 32B, 950, B53, KS57, MC32037, MC32038, SBR50, SBR60, SBR70, SBR85, VAC-35
Nilfisk-Advance: 1000, 20 UHSB, 20 UHSBD, 2000, 2000B, 200B, 200HD, 200LX, 2052B/HM, 20B, 210B, 21B, 240, 240LX, 24B, 2500, 2500B, 260B, 265LX, 26B, 26BF, 2700, 280, 285LX, 28HD, 28LX, 320, 3200, 3200C, 325LX, 32B, 32BD, 32LX, 34HD, 3800, 385HD, 385LX, 38BD, 38LX, 5000B/HM, 5010B/HM, 5015B/HM, 5800B, AquaMAX, BHS 5120, T2000, Trac 320, Trac 380, VS20
NSS Enterprises Incorporated: 200LX, 2016 DB/AB/AE, 20B, 20W/D, 210B, 21B, 24, 240LX, 24B, 260B, 2625, 2625 DB, 265LX, 26B, 26VS, 2730, 2730 DB, 27F/B VS, 285LX, 28LX, 325LX, 32B, 32BD, 32LX, 3330, 3330 DB, 33F/B VS, 385LX, 38BD, 38LX
Pioneer/Eclipse Corporation: PE-2000B, PE-2000C, PE-2400S, PE-3200S
Pullman/Holt Corporation: GB2000
Rolls-Surrette: EIGH210M
Skyjack Inc.: SJIII
Snorkel International: AB38N, AB38W, S1930, S2033, S2545, S2633, S2646, SL 15, SL 19, SL 20, SL 26, SLH 2580, SLH 3280, SLH 4090, SLH 4091, UNO 33E, UNO41E
Taski: 1465, 1480, 210E, 215E HD, 215E ST, 2510, 2550, 426 ST, 432 ST, 450E, 465, 480, 5700 ST, 6100, 6100E, 6200, 7200 ST
Taylor Dunn: Aristocrat, B-050, B-100, B-150, B-2101 AMB GT, B-210EE, B-210GT, B-238, B-248 36V GT, B-248 48V GT, B-254 36V GT, BT-248 36V GT, BT-280 36V GT, Burdenmaster B2-10, C-415, C-432, C-433, Carrymaster B-125, E-Tram BT2-80, e2050 Workman, Expeditor MX600, FT-240, FT-280, Loadmaster B1-50, Model B 2-48, MX-1600, MX-600, R-380 36V, R-380 36V GT, R-380 48V, R-380 48V GT, Roadmaster R3-80, SC-090 24V, SC-100 24V, SC-100 36V, SC-100 48V, SC-175, SS-534, SS-536, SS-546, Stepsave SS5-36, Stockchaser SC1-59, Tourmaster B-100
Tennant Company (Nobles Industries Inc.): 5680, 5700, T5, 5400, T7, 7100, 7200, SS5, Speed Scrub 5, 6200, 6300, T15,
Terex Corp.: 2034, 2548, 32/21E, 32/21N, 41/24E, 41/24N, A28, A32J, A38, A42J, TA33, TA34, TA40, TA50E, V, V1433, V1433XL, V1833, V1833XL, V1932, V2033, V2033XL, V2048, V2048XL, V2053, V2648, V2648XL, V2653, V2653XL, X-14
Tornado Industries: 105B, 125B, 130B, 9400
Trojan: T-105
UBC: UB-GC
Universal Battery: UB-GC (Golf Cart)
UPG: UB-GC (Golf Cart)
US Battery: US-2200
Windsor Industries Incorporated: 20, 24, 28, 34, PT-20, PT-24, PT-32, S-200, S-260, S-260XP, S-261, S-262, Tracker AS
