Description

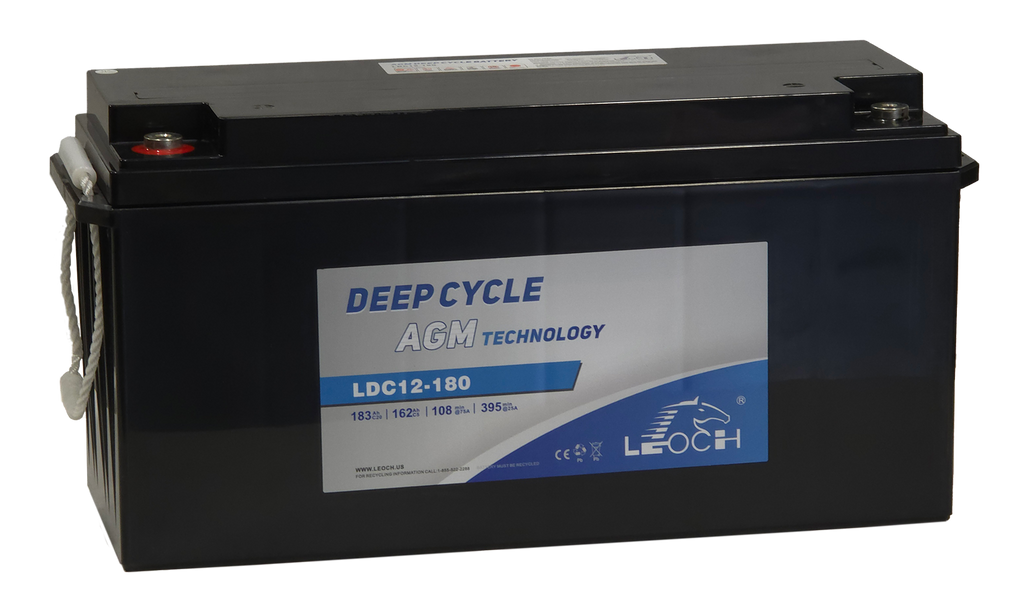

The Leoch LDC12-180 is a 12-volt, 180Ah deep-cycle AGM battery built with Leoch's advanced carbon AGM-GEL technology — the largest single-case 12V option in the LDC lineup we carry, and the one to reach for when your equipment needs maximum runtime between charges. It's a strong fit for golf carts, aerial work platforms, sightseeing and cleaning vehicles, mobility equipment, and other traction applications that put in long, demanding days.
Carbon additives in the negative plate improve charge acceptance and reduce sulfation, while the gel-electrolyte blend helps prevent acid stratification — both of which translate directly into a longer service life for equipment that spends most of its time in a partial state of charge. Pre-sulfate technology and a higher paste density further reduce shedding, and the rugged ABS case is built to handle the vibration and shock of rough terrain.
Why choose the LDC12-180
- Advanced carbon AGM-GEL chemistry for better partial-state-of-charge (PSoC) cycling
- 180Ah capacity for extended runtime versus smaller Group-size AGM batteries
- Wide operating range: rated for discharge from -20°C to 55°C (-4°F to 131°F)
- Sealed, non-spillable, valve-regulated construction — no watering or venting required
Specifications
| Model | LDC12-180 |
| Voltage | 12V |
| Capacity (20HR) | 180Ah |
| Capacity (5HR) | 162Ah |
| Capacity (3HR) | 150Ah |
| Reserve Capacity @25A | 395 min |
| Reserve Capacity @56A | 155 min |
| Length | 483mm (19.0in) |
| Width | 170mm (6.69in) |
| Height | 238.5mm (9.39in) |
| Weight | 50.1kg (110.5 lbs) |
| Terminal | T11 (M8) threaded terminal |
| Case Material | ABS |
| Operating Temp (Discharge) | -20°C to 55°C (-4°F to 131°F) |
| Battery Type | Sealed carbon AGM-GEL, valve-regulated, maintenance-free |
Ships with a full manufacturer warranty. Verify length before ordering — at 483mm (19in), this is one of the longer batteries in the LDC 12V range. Message us if you'd like help confirming fit.
