Description

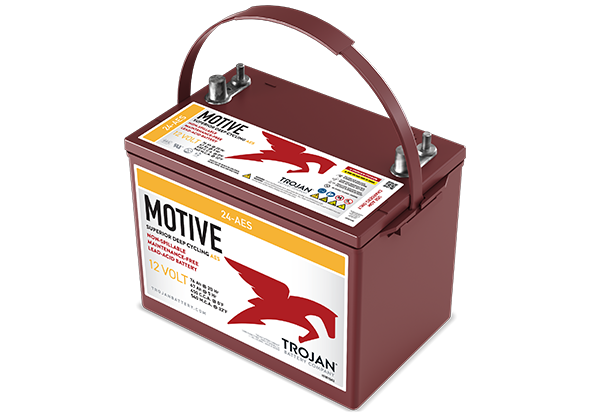

The 24-AES is the entry point into Trojan's AES AGM line — the same Group 24 footprint as the flooded 24TMX, but sealed AGM construction rated for up to 3x the cycle life of a standard AGM battery (1,200 cycles at 100% depth of discharge versus roughly 400 for standard AGM). For a scrubber that gets deep-discharged every shift rather than topped off, that cycle-life gap is the real reason to pay the AGM premium over flooded.
It's rated at 67Ah (5-hr) up to 84Ah (100-hr), with 137 minutes of reserve at 25 amps. Because it's sealed and non-spillable, it can be mounted horizontally in tight equipment bays where a flooded battery's orientation requirements would rule that out — and there's no watering schedule to maintain.
- 12V, 67Ah (5-hr rate) / 84Ah (100-hr rate)
- Dimensions: 10.77" L x 6.84" W x 8.62" H
- Weight: 54 lbs
- Automotive post & stud terminal (DT)
- Sealed, non-spillable; mountable horizontally; 3-year warranty
