Description

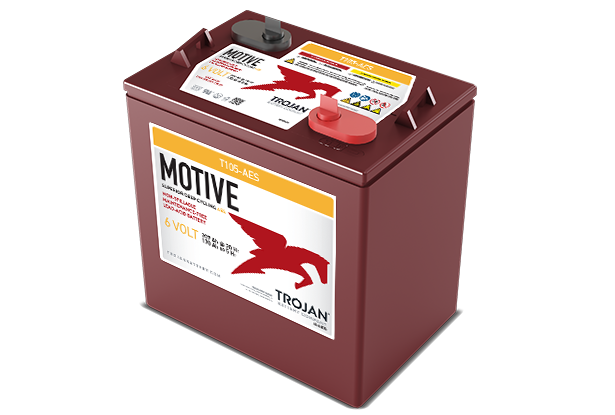

The T105-AES puts Trojan's most recognized case size — the GC2 format shared with the flooded T-105 — into sealed AGM form. That's a deliberate pairing: equipment already set up for a GC2-format battery tray can drop in the AES version without any mechanical changes, only gaining the sealed, maintenance-free construction and roughly 3x the cycle life of standard AGM.
Capacity is 207Ah (5-hr) up to 246Ah (100-hr), with 529 minutes of reserve at 25 amps — slightly more usable capacity than the flooded T-105's 250Ah spec at the equivalent rate, despite the sealed construction. Terminal options are M8 insert or M8 with an LT adapter, different from the embedded terminals on the flooded T-105 family, so cabling needs to match.
- 6V, 207Ah (5-hr rate) / 246Ah (100-hr rate)
- Dimensions: 10.30" L x 7.06" W x 10.73" H
- Weight: 89 lbs
- Terminals: M8 insert, M8 with LT adapter
- GC2 case size; sealed, non-spillable; 3-year warranty
