Description

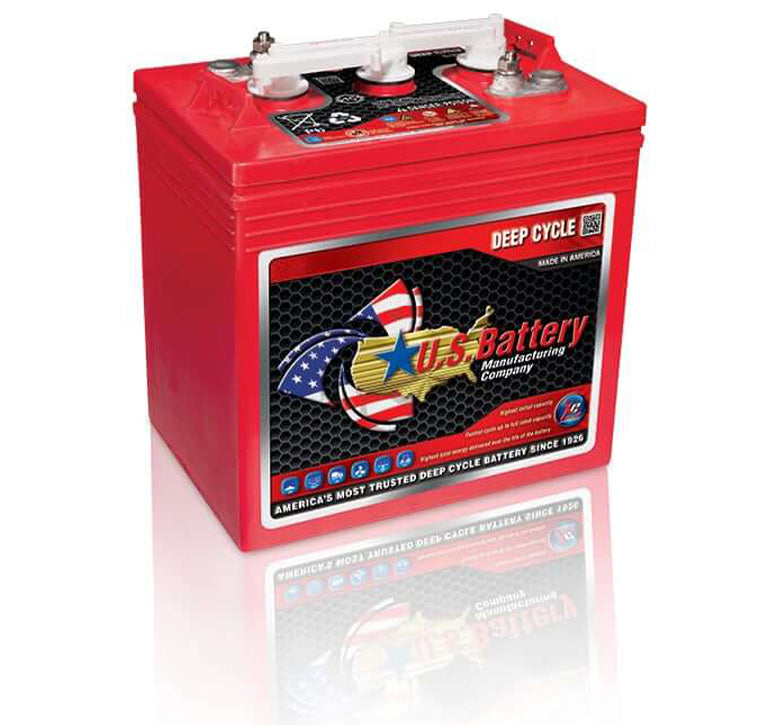

US 125 XC2 is a 6-volt, 242Ah flooded lead-acid deep cycle battery in the GC2 case size, built for golf carts and multi-purpose equipment that demand strong capacity without moving up to a taller case.
The US 125 XC2 shares U.S. Battery's XC2™ paste formulation and Diamond Plate Technology® across its full flooded lineup, giving it a faster cycle-up curve and more total energy delivered across its service life than conventional flooded designs.
Why choose the US 125 XC2
- 242Ah (20-hour rate) capacity in the standard GC2 footprint
- XC2™ technology for quicker break-in and longer service life
- Molded-in UTL terminals for easy, secure hookup
- Meets current CEC charge-efficiency standards
Specifications
| Model | US 125 XC2 |
| Voltage | 6V |
| Capacity (20HR) | 242Ah |
| Minutes @75A | 140 |
| Minutes @25A | 517 |
| Length | 10.25" |
| Width | 7.125" |
| Height | 11.25" |
| Weight | approx. 63 lbs |
| Terminal | Molded-in UTL |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
The US 125 XC2 is a strong middle-capacity option in the GC2 lineup — a solid choice if you want more runtime than the US 2000/2200 without moving to a taller 145 or 901-case battery.
