Description

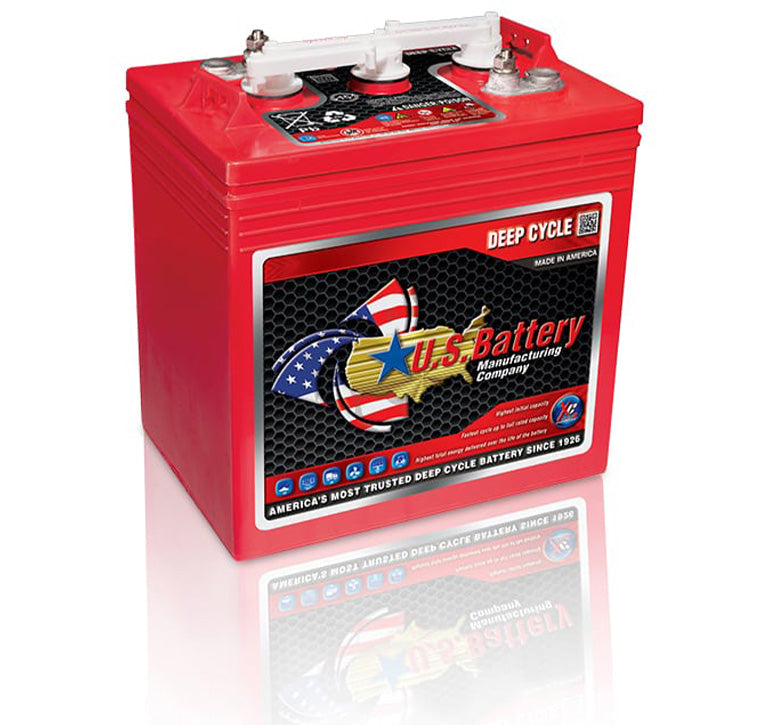

US 145 XC2 is a 6-volt, 251Ah flooded lead-acid deep cycle battery, slightly taller than the standard GC2 case to fit more plate area and deliver additional runtime for golf carts and multi-purpose 6V applications.
Manufactured in the USA with U.S. Battery's XC2™ paste formulation and Diamond Plate Technology®, the US 145 XC2 is designed to reach full capacity in fewer cycles and sustain higher total energy output over its working life.
Why choose the US 145 XC2
- 251Ah (20-hour rate) capacity with a taller GC2-family case for extra plate area
- XC2™ formulation for faster cycle-up and extended life
- Molded-in UTL terminals for a secure, low-resistance connection
- Meets current CEC combined charger/battery efficiency requirements
Specifications
| Model | US 145 XC2 |
| Voltage | 6V |
| Capacity (20HR) | 251Ah |
| Minutes @75A | 154 |
| Minutes @25A | 562 |
| Length | 10.25" |
| Width | 7.125" |
| Height | 11.875" |
| Weight | approx. 65 lbs |
| Terminal | Molded-in UTL |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
Because the US 145 XC2 sits about 5/8" taller than the standard GC2 case, please double-check your battery compartment's clearance before ordering, or reach out and we'll help confirm fit.
