Description

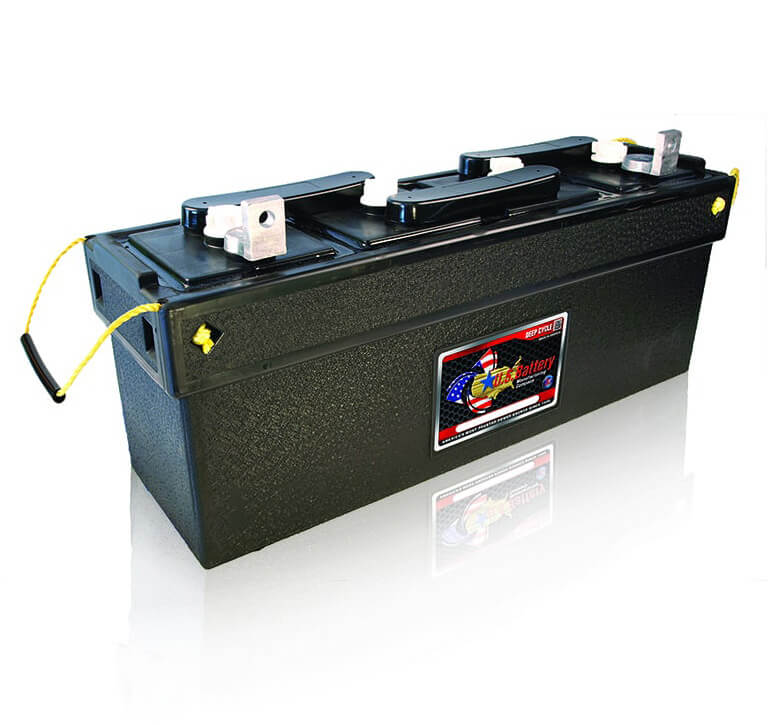

US 17-4-1 XC2 is an 8-volt, 220Ah flooded lead-acid deep cycle battery in a long, low-profile marine-style case, offering more capacity than the US 15-4-1 XC2 while keeping a low overall height for tight marine battery compartments.
Hand-built in the USA with U.S. Battery's XC2™ paste formulation and Diamond Plate Technology®, the US 17-4-1 XC2 is engineered for fast cycle-up and strong total energy delivery across a demanding marine duty cycle.
Why choose the US 17-4-1 XC2
- 220Ah (20-hour rate) capacity in a low-profile marine case
- XC2™ formulation for faster cycle-up and extended service life
- Large "L" terminal standard, with SAE option available
- Strong middle-capacity option in the low-profile marine lineup
Specifications
| Model | US 17-4-1 XC2 |
| Voltage | 8V |
| Capacity (20HR) | 220Ah |
| Minutes @75A | 147 |
| Minutes @25A | 490 |
| Length | 27.4375" |
| Width | 7.4375" |
| Height | 10.5" |
| Weight | approx. 76 lbs |
| Terminal | Large "L" |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
Note: this marine-specific model has limited comparable pricing data online — treat the listed price as an estimate, and ask us to verify current cost before placing a larger order.
