Description

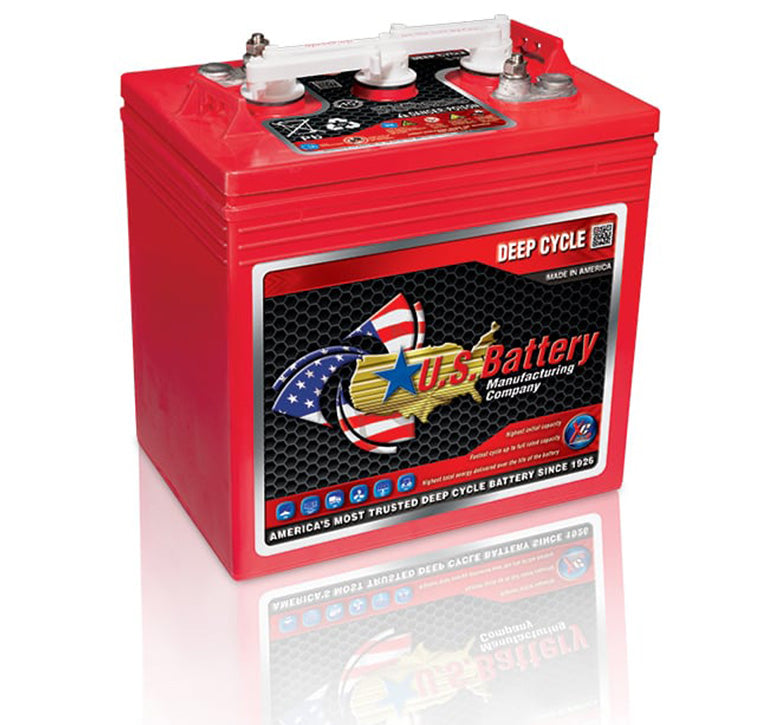

US 2200 XC2 is a 6-volt, 232Ah flooded lead-acid deep cycle battery in U.S. Battery's GC2 case size, offering a capacity step up from the US 2000 XC2 for carts and equipment that need extra runtime without changing the physical footprint.
Like the rest of the XC2™ family, the US 2200 XC2 uses U.S. Battery's proprietary paste formulation and Diamond Plate Technology® for quicker cycle-up and stronger total energy delivery, hand-built and tested in the USA.
Why choose the US 2200 XC2
- 232Ah (20-hour rate) capacity — more runtime in the same GC2 footprint
- XC2™ formulation for faster break-in and higher lifetime output
- Molded-in UTL terminals for straightforward wiring
- Drop-in fit for existing GC2 racks and chargers
Specifications
| Model | US 2200 XC2 |
| Voltage | 6V |
| Capacity (20HR) | 232Ah |
| Minutes @75A | 122 |
| Minutes @25A | 474 |
| Length | 10.25" |
| Width | 7.125" |
| Height | 11.25" |
| Weight | approx. 60 lbs |
| Terminal | Molded-in UTL |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
If you're stepping up from a US 2000 XC2 bank, the US 2200 XC2 drops into the same GC2 tray — no rack or wiring changes needed. Ask us if you're unsure which capacity fits your usage pattern.
