Description

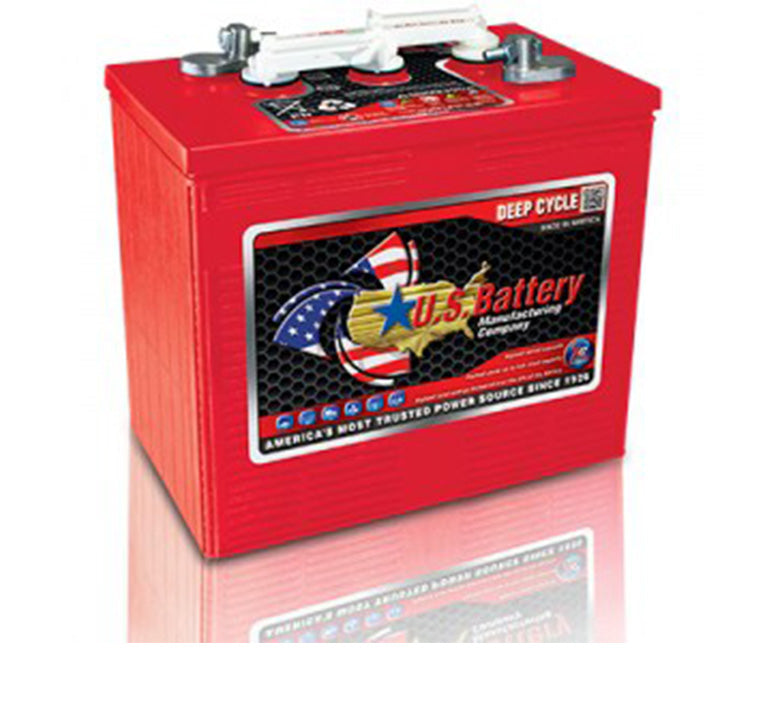

US 250HC XC2 is a 6-volt, 280Ah high-capacity flooded lead-acid deep cycle battery in U.S. Battery's 901 case, built for sweeper/scrubbers, aerial work platforms, and other industrial-duty equipment that demand extra runtime in the same case footprint as the standard US 250 XC2.
Built in the USA with U.S. Battery's XC2™ paste formulation and Diamond Plate Technology®, the "HC" (high-capacity) version packs additional plate material into the 901 case for longer runtime between charges without increasing the physical size.
Why choose the US 250HC XC2
- 280Ah (20-hour rate) capacity — the high-capacity step up from the US 250 XC2
- Same 901 case footprint, so it's a drop-in upgrade for existing trays
- XC2™ formulation for faster cycle-up and extended service life
- Offset "S" terminal standard, with Dual, SAE, and UTL options available
Specifications
| Model | US 250HC XC2 |
| Voltage | 6V |
| Capacity (20HR) | 280Ah |
| Minutes @75A | 178 |
| Minutes @25A | 635 |
| Length | 11.625" |
| Width | 7.125" |
| Height | 11.625" |
| Weight | approx. 82 lbs |
| Terminal | Offset "S" |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
At roughly 82 lbs, this is a two-person lift for most installers — let us know if you'd like guidance on safe handling or terminal orientation before your order ships.
