Description

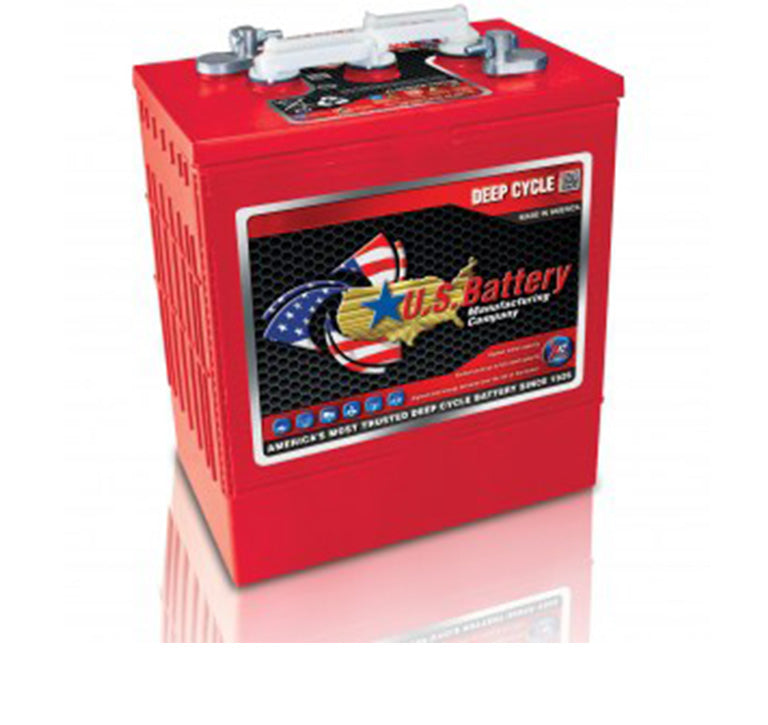

US 305 XC2 is a 6-volt, 310Ah flooded lead-acid deep cycle battery in U.S. Battery's large 902 case, the standard-capacity model in the 305 family and a common fit for sweeper/scrubbers, aerial work platforms, and other heavy commercial equipment.
Manufactured in the USA with U.S. Battery's XC2™ paste formulation and Diamond Plate Technology®, the US 305 XC2 is built to cycle up faster and deliver more usable energy across its service life than conventional flooded designs of the same size.
Why choose the US 305 XC2
- 310Ah (20-hour rate) capacity — the standard rating in the 902-case family
- XC2™ technology for quicker cycle-up and extended battery life
- Offset "S" terminal standard, with Dual, SAE, and UTL options available
- Common OEM-equivalent fit across sweeper/scrubber and industrial fleets
Specifications
| Model | US 305 XC2 |
| Voltage | 6V |
| Capacity (20HR) | 310Ah |
| Minutes @75A | 195 |
| Minutes @25A | 715 |
| Length | 11.875" |
| Width | 7.125" |
| Height | 14.625" |
| Weight | 90 lbs |
| Terminal | Offset "S" |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
At 90 lbs, plan for a two-person lift and check your equipment's compartment depth before ordering — we're glad to help confirm fit if you send us your machine's model number.
