Description

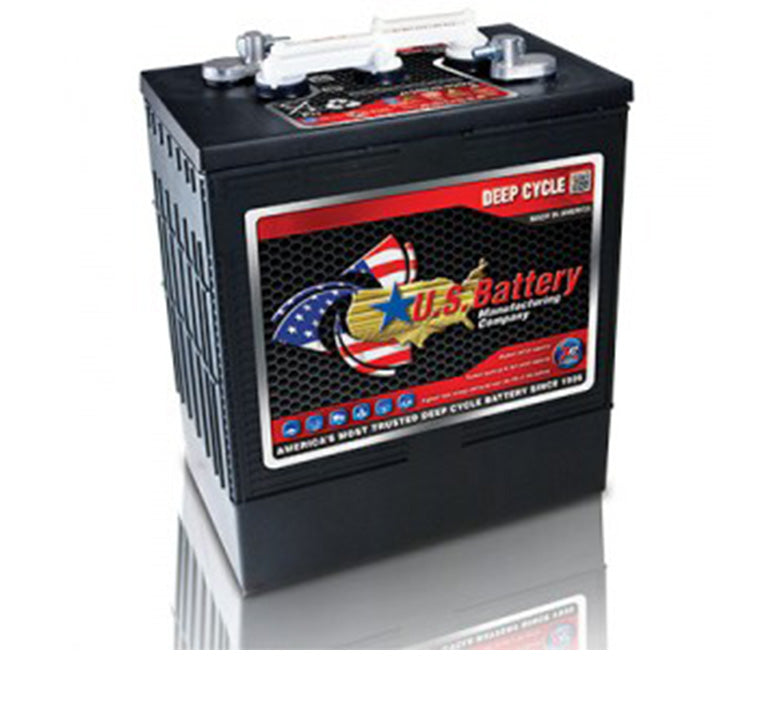

US 305E XC2 is a 6-volt, 290Ah flooded lead-acid deep cycle battery in U.S. Battery's large 902 case, the entry-capacity model in the 305 family used widely in sweeper/scrubbers and other heavy-duty multi-purpose equipment.
Hand-built in the USA with XC2™ paste formulation and Diamond Plate Technology®, the US 305E XC2 is designed to cycle up to full capacity quickly and deliver strong total energy output over a long industrial service life.
Why choose the US 305E XC2
- 290Ah (20-hour rate) capacity in the large-format 902 case
- XC2™ formulation for faster break-in and higher lifetime energy delivery
- Offset "S" terminal standard, with Dual, SAE, and UTL options available
- Entry point into the 902-case family for teams that don't need the full 340Ah HC rating
Specifications
| Model | US 305E XC2 |
| Voltage | 6V |
| Capacity (20HR) | 290Ah |
| Minutes @75A | 182 |
| Minutes @25A | 660 |
| Length | 11.875" |
| Width | 7.125" |
| Height | 14.625" |
| Weight | 86 lbs |
| Terminal | Offset "S" |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
At 86 lbs this is a large-format industrial battery — we recommend a two-person lift, and we're happy to confirm terminal orientation for your specific equipment before you order.
