Description

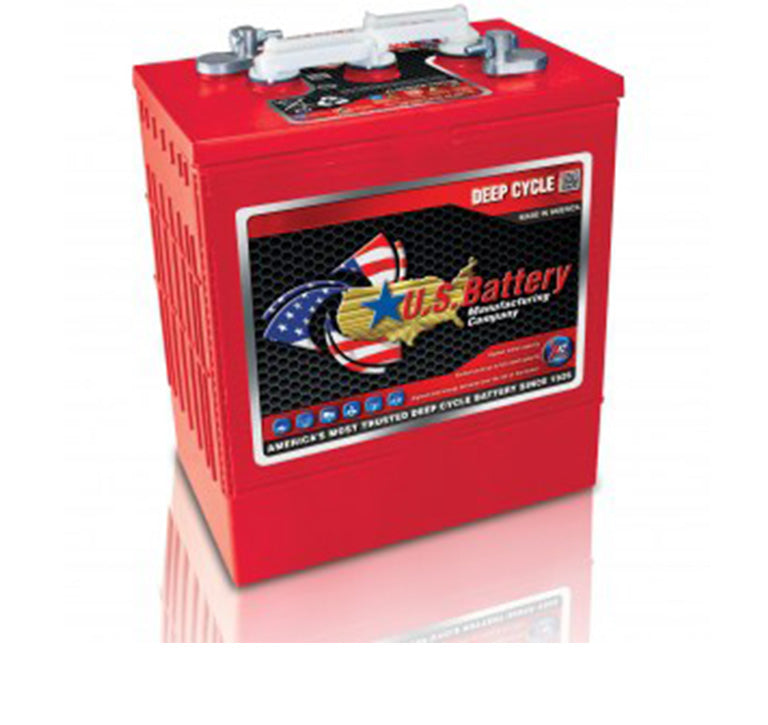

US 305HC XC2 is a 6-volt, 340Ah high-capacity flooded lead-acid deep cycle battery in U.S. Battery's large 902 case — the top-capacity model in the 305 family, matching the energy of U.S. Battery's AGM 305 in a traditional flooded design.
Built in the USA with U.S. Battery's XC2™ paste formulation and Diamond Plate Technology®, the "HC" designation packs maximum plate area into the 902 case for the longest runtime between charges in this case size, ideal for aerial lifts and heavy-duty scrubber/sweeper fleets.
Why choose the US 305HC XC2
- 340Ah (20-hour rate) capacity — the highest rating in the 902-case flooded family
- XC2™ formulation for faster cycle-up and maximum lifetime energy delivery
- Offset "S" terminal standard, with Dual, SAE, and UTL options available
- Matches AGM 305 capacity for teams standardizing runtime across chemistries
Specifications
| Model | US 305HC XC2 |
| Voltage | 6V |
| Capacity (20HR) | 340Ah |
| Minutes @75A | 215 |
| Minutes @25A | 790 |
| Length | 11.875" |
| Width | 7.125" |
| Height | 14.625" |
| Weight | approx. 102 lbs |
| Terminal | Offset "S" |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
This is our highest-capacity 902-case flooded battery at roughly 102 lbs — freight and lift-gate delivery may apply, and we recommend mechanical lifting equipment for installation.
