Description

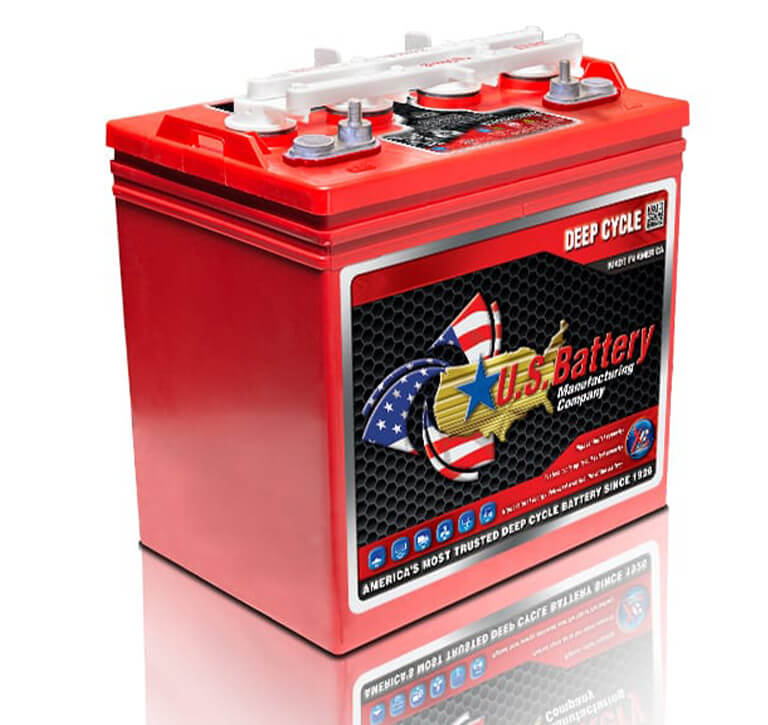

US 8VGCHC XC2 is an 8-volt, 183Ah high-capacity flooded lead-acid deep cycle battery in U.S. Battery's GC8 case, the step-up capacity model in the 8-volt golf cart and multi-purpose lineup for equipment that needs more runtime in the same footprint.
Built in the USA with U.S. Battery's XC2™ paste formulation and Diamond Plate Technology®, the "HC" version packs additional plate material into the GC8 case for longer runtime between charges without increasing the physical size.
Why choose the US 8VGCHC XC2
- 183Ah (20-hour rate) capacity — a step up from the US 8VGCE XC2 in the same case
- XC2™ formulation for faster cycle-up and extended service life
- Molded-in UTL terminals standard, with offset "S", UT, Small "L", Large "L", and SAE options
- Drop-in fit for existing GC8 trays and chargers
Specifications
| Model | US 8VGCHC XC2 |
| Voltage | 8V |
| Capacity (20HR) | 183Ah |
| Minutes @56A | 136 |
| Minutes @25A | 365 |
| Length | 10.25" |
| Width | 7.125" |
| Height | 11.25" |
| Weight | 62 lbs |
| Terminal | Molded-in UTL |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
If you're upgrading from a US 8VGCE XC2 bank, the US 8VGCHC XC2 drops into the same GC8 tray with no rack changes needed. Let us know your cart model if you want confirmation before ordering.
