Description

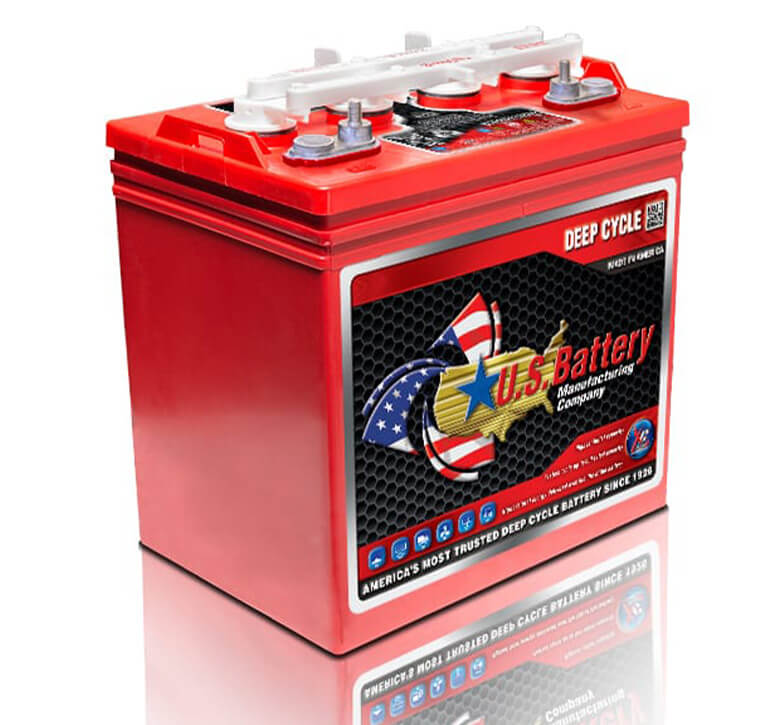

US 8VHATB XC2 is an 8-volt, 205Ah flooded lead-acid deep cycle battery in U.S. Battery's taller GC8H case, the highest-capacity 8-volt golf cart/multi-purpose model in the lineup for equipment that needs maximum runtime per cell.
Manufactured in the USA with U.S. Battery's XC2™ paste formulation and Diamond Plate Technology®, the US 8VHATB XC2 is designed to cycle up faster and deliver more usable energy over its service life than standard flooded designs of similar size.
Why choose the US 8VHATB XC2
- 205Ah (20-hour rate) capacity — the top rating in the 8-volt GC8/GC8H family
- XC2™ technology for quicker break-in and longer service life
- Molded-in UTL terminals standard, with offset "S", UT, Small "L", Large "L", and SAE options
- Taller GC8H case fits more plate area for equipment needing maximum 8V runtime
Specifications
| Model | US 8VHATB XC2 |
| Voltage | 8V |
| Capacity (20HR) | 205Ah |
| Minutes @56A | 164 |
| Minutes @25A | 435 |
| Length | 10.25" |
| Width | 7.125" |
| Height | 11.875" |
| Weight | approx. 69 lbs |
| Terminal | Molded-in UTL |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
Because the US 8VHATB XC2 uses the taller GC8H case, please confirm your compartment's height clearance before ordering — we're happy to help verify fit against your cart or machine's spec sheet.
