Description

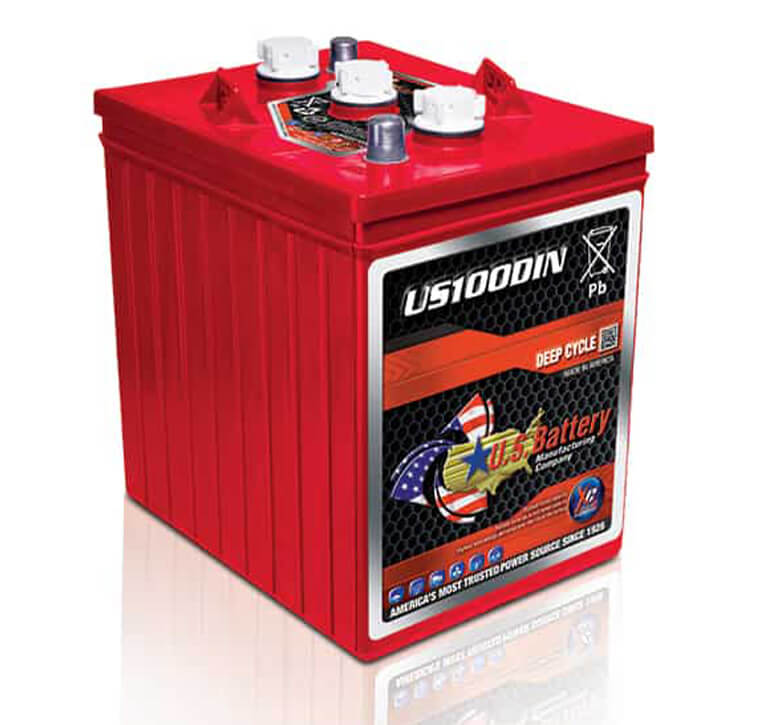

The US 100DIN XC2 uses a DIN-format case rather than U.S. Battery's usual GC2 shape, which makes it the go-to option for sweepers and imported equipment originally built around European battery standards.
At 247Ah it actually edges out the GC2-case US 145 (251Ah is close, but the case shape is what matters here) — if your machine was designed for a DIN-format battery, swapping in a GC2-case unit usually isn't an option regardless of amp-hours, so this fills that specific gap in the catalog.
Why choose the US 100DIN XC2
- DIN-format case for equipment that won't accept a standard GC2 battery
- 247Ah keeps pace with our GC2-case 6-volt options despite the different shape
- SAE terminal for straightforward cable connections
- Same XC2™ plate manufacturing as the rest of our flooded lineup
Specifications
| Model | US 100DIN XC2 |
| Voltage | 6V |
| Capacity (20HR) | 247Ah |
| Minutes @75A | 135 |
| Minutes @25A | 520 |
| Length | 9.625" |
| Width | 7.5" |
| Height | 10.875" |
| Weight | 48 lbs |
| Terminal | SAE |
| Case Material | Polypropylene, heat sealed |
| Battery Type | Flooded Lead Acid (FLA) |
U.S. retail pricing for this DIN-format model was sparse online — treat the listed price as an estimate and confirm current distributor cost before heavy promotion.
