Description

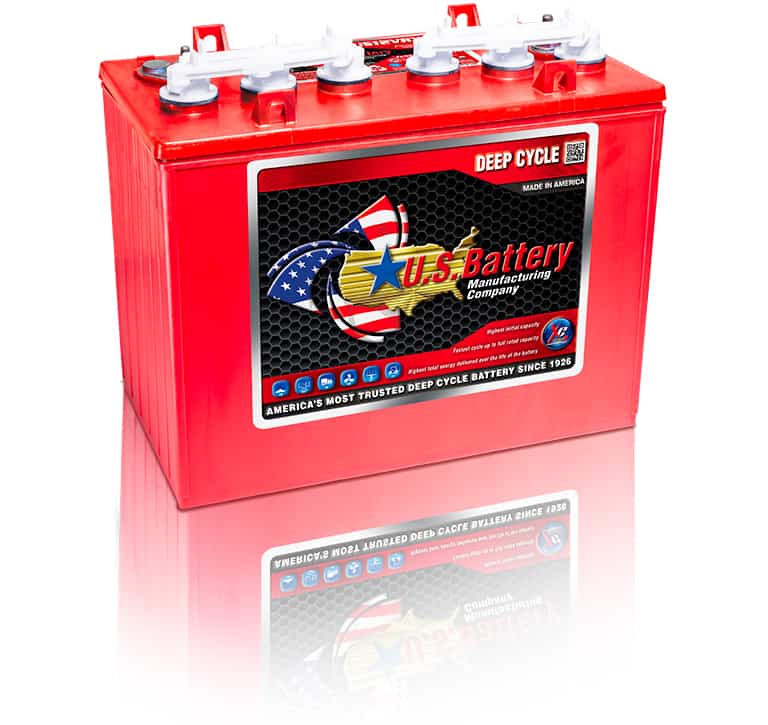

The US 12VRX XC2 packs 155Ah into the same GC12 case as the 12VE — a 10Ah bump that translates to roughly 22 extra minutes of runtime at a 75A draw.
For shops running scrubbers on back-to-back shifts, that difference can mean not swapping a battery mid-shift. Since the case dimensions match the 12VE exactly, upgrading doesn't require any compartment or bracket changes.
Why choose the US 12VRX XC2
- 155Ah — the higher-capacity option in the GC12 case size
- Direct physical swap for the 12VE with no bracket changes
- Molded-in UTL terminal for reliable cable connections
- Hand-built cell construction with U.S. Battery's XC2™ plates
Specifications
| Model | US 12VRX XC2 |
| Voltage | 12V |
| Capacity (20HR) | 155Ah |
| Minutes @75A | 77 |
| Minutes @25A | 292 |
| Length | 13.125" |
| Width | 7.0625" |
| Height | 11.375" (w/o handles) |
| Weight | 68 lbs |
| Terminal | Molded-in UTL |
| Case Material | Polypropylene, heat sealed |
| Battery Type | Flooded Lead Acid (FLA) |
If you're already running the US 12VE and finding you need more shift length, this is the direct upsize — same footprint, more Ah.
