Description

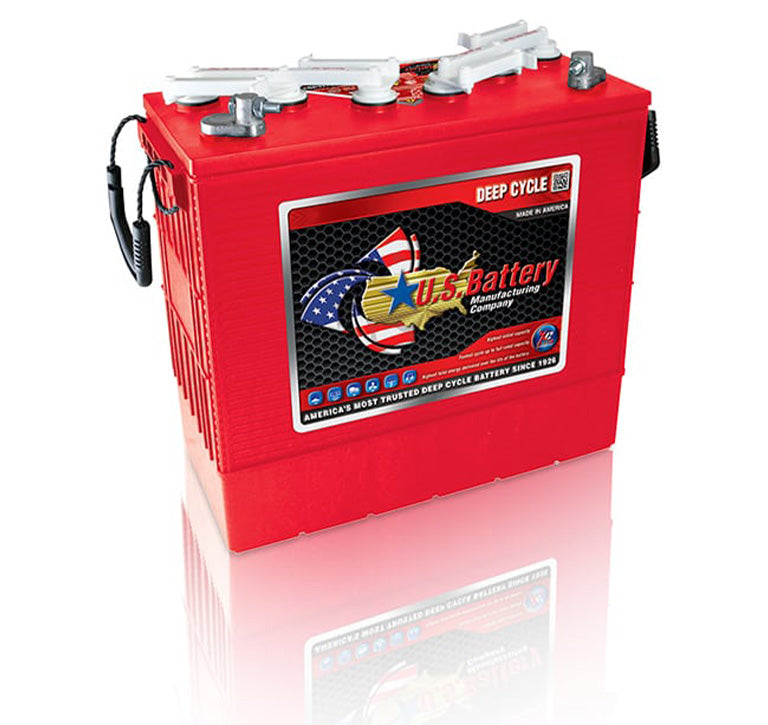

The US 185 XC2 is the middle capacity point in U.S. Battery's large-format 921-case family — 200Ah, sitting between the 185Ah entry-level 185E and the 220Ah 185HC.
At 15.625" long and roughly 130 lbs, this is a two-person-lift battery, so it tends to go into equipment that's serviced with a hand truck or hoist rather than pulled by hand. The offset "S" terminal is shared across the whole 921 family for parts interchangeability.
Why choose the US 185 XC2
- 200Ah — a step up from 185E without jumping to the top-capacity HC
- Offset "S" terminal shared with 185E and 185HC for fleet consistency
- Large 921 case suited to industrial scrubbers and heavy sweepers
- XC2™ plate construction for a longer service life
Specifications
| Model | US 185 XC2 |
| Voltage | 12V |
| Capacity (20HR) | 200Ah |
| Minutes @75A | 106 |
| Minutes @25A | 398 |
| Length | 15.625" |
| Width | 7.0625" |
| Height | 14.625" |
| Weight | 130 lbs |
| Terminal | Offset "S" |
| Case Material | Polypropylene, heat sealed |
| Battery Type | Flooded Lead Acid (FLA) |
If your current battery is our existing US Battery 185Ah listing (likely the 185E), this is the genuine capacity upgrade — not a duplicate of that item.
