Description

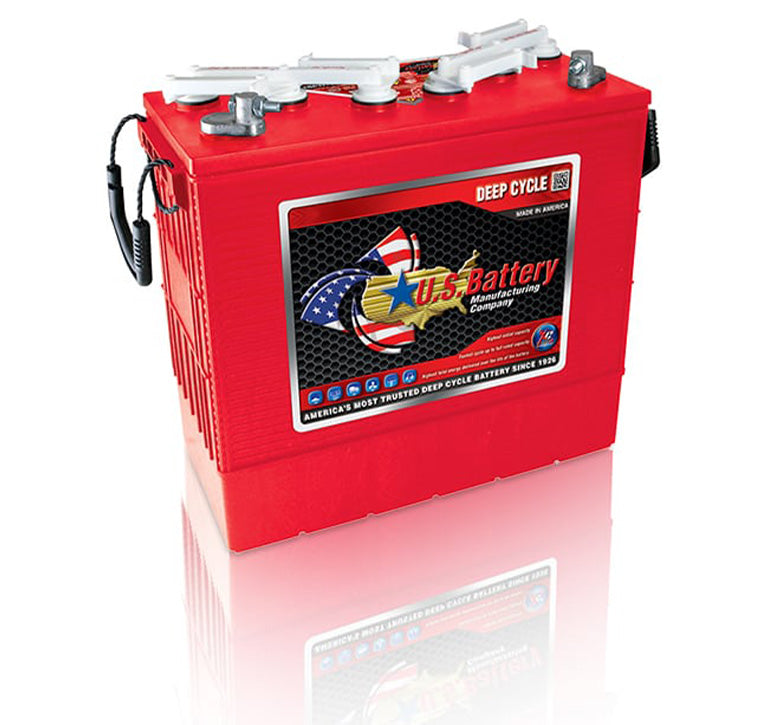

The US 185HC XC2 tops out the 921-case family at 220Ah — the pick for fleets that measure success in fewer battery swaps per week, not just amp-hours on a spec sheet.
It's also the only battery in this trio rated at three discharge points (75A, 56A, and 25A) rather than two, which matters if you're sizing runtime against a charger or inverter spec'd around a 56A draw.
Why choose the US 185HC XC2
- 220Ah — the longest runtime available in the 921 case size
- Rated at 75A, 56A, and 25A discharge for more precise runtime planning
- Offset "S" terminal shared with 185 and 185E for fleet parts commonality
- XC2™ plate construction built for repeated deep discharge
Specifications
| Model | US 185HC XC2 |
| Voltage | 12V |
| Capacity (20HR) | 220Ah |
| Minutes @75A | 117 |
| Minutes @56A | 167 |
| Minutes @25A | 443 |
| Length | 15.625" |
| Width | 7.0625" |
| Height | 14.625" |
| Weight | 138 lbs |
| Terminal | Offset "S" |
| Case Material | Polypropylene, heat sealed |
| Battery Type | Flooded Lead Acid (FLA) |
At 138 lbs this is our heaviest single-unit battery — budget for freight handling and confirm your loading dock or hand truck can manage it before ordering.
