Description

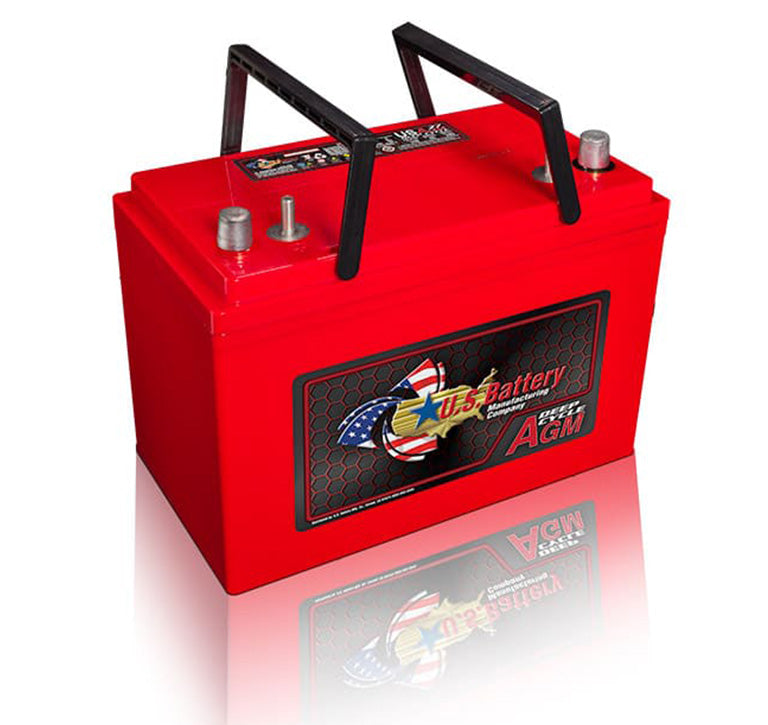

The US Battery US AGM 27 steps up to 108Ah in U.S. Battery's Group 27 case, giving marine, RV, and floor-scrubber applications more capacity than the Group 24 option while still fitting a widely-compatible footprint. It's a sealed, maintenance-free replacement for flooded Group 27 batteries in demanding 12V applications.
Group 27 sits right above Group 24 in U.S. Battery's AGM lineup — same width and height family, just longer, which is where the extra 18Ah over the AGM 24 comes from. If your equipment bay has a few extra inches of depth to spare, stepping up to Group 27 is usually a better move than trying to squeeze more capacity out of a Group 24 case. The valve-regulated, non-spillable design is completely maintenance-free and safe for enclosed compartments.
Why choose the US AGM 27
- 108Ah of deep-cycle capacity in the versatile Group 27 case
- DT-5/16 terminal for flexible wiring into 12V systems
- 18Ah more than Group 24 for equipment bays with a bit of extra depth
- Sealed, non-spillable AGM chemistry — no watering, no acid spills
Specifications
| Model | US AGM 27 |
| Voltage | 12V |
| Capacity (20HR) | 108Ah |
| Capacity (5HR) | 98Ah |
| Reserve Capacity @75A | 55 min |
| Reserve Capacity @56A | 80 min |
| Reserve Capacity @25A | 220 min |
| Length | 12.05in (306mm) |
| Width | 6.61in (168mm) |
| Height | 9.17in (233mm) |
| Weight | 61 lbs (27.8kg) |
| Terminal | DT-5/16 |
| Case Material | ABS, Heat Sealed |
| Battery Type | Sealed AGM, Valve-Regulated |
Backed by U.S. Battery's manufacturer warranty. Measure your battery bay's depth before ordering — Group 27 is longer than Group 24 but shares the same width and height.
