Description

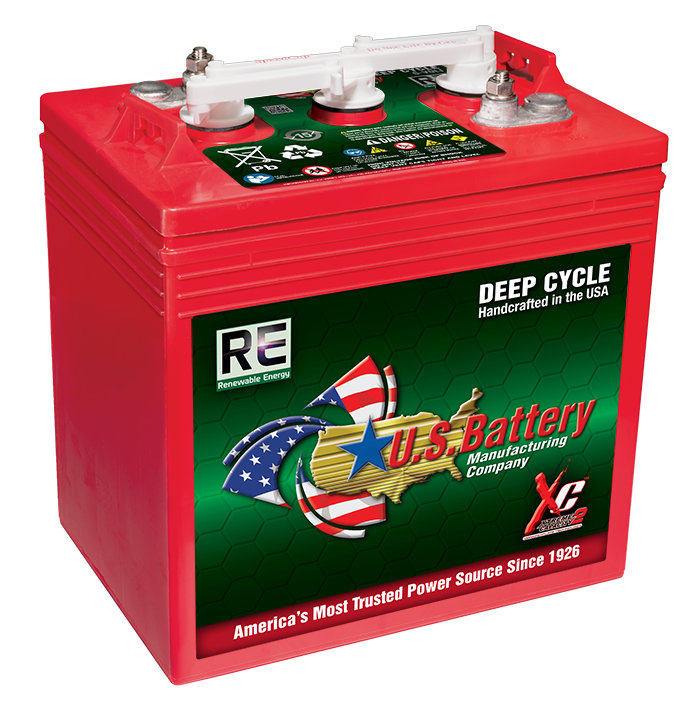

The US RE GC2H XC2 repurposes U.S. Battery's familiar GC2 case for solar and off-grid storage duty, rated 242Ah — close to the US 145 XC2's 251Ah, but tuned for the shallow, near-daily cycling typical of a solar bank rather than golf-cart discharge patterns.
If you're stocking this alongside the US 125 and US 145 already in the catalog, the RE GC2H is the one to point renewable-energy customers toward specifically — those two are engineered around traction/EV discharge curves instead.
Why choose the US RE GC2H XC2
- Cycling profile tuned for solar/off-grid discharge patterns, not golf-cart traction
- Standard GC2 footprint drops into existing battery banks without new racking
- Available with UTL, Large "L", or Small "L" terminals
- Same manufacturing standards as our GC2 traction batteries, different use case
Specifications
| Model | US RE GC2H XC2 |
| Voltage | 6V |
| Capacity (20HR) | 242Ah |
| Minutes @75A | 136 |
| Minutes @25A | 507 |
| Length | 10.25" |
| Width | 7.125" |
| Height | 11.875" |
| Weight | 65 lbs |
| Terminal | UTL |
| Case Material | Polypropylene, heat sealed |
| Battery Type | Flooded Lead Acid (FLA) |
U.S. Battery is mid-transition from green to red cases on this line — customers may receive either depending on current stock.
