Description

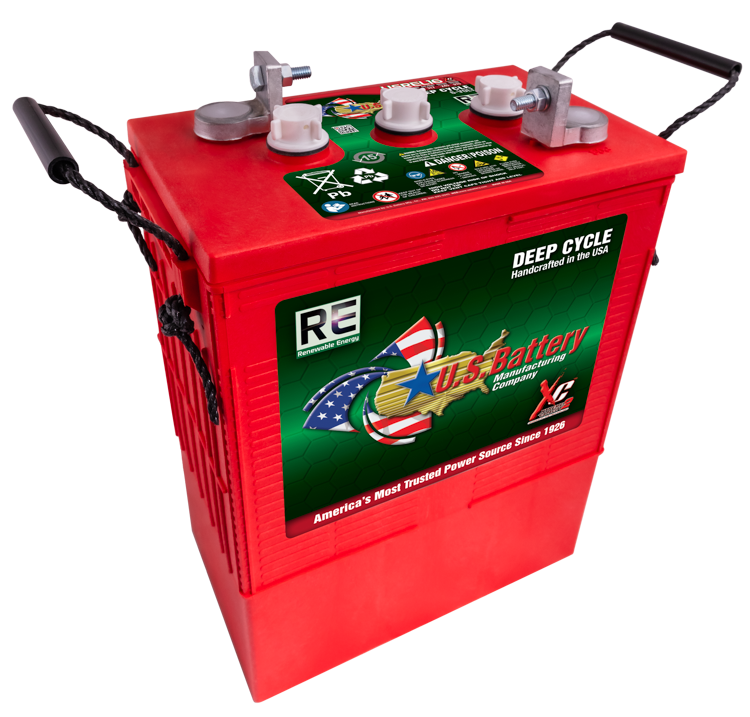

The US RE L16 XC2 is the solar-bank counterpart to our L16 traction batteries — same 903 case and close to the L16HC's footprint, but engineered around the shallow, near-daily cycling of a renewable energy bank rather than a golf cart's deep discharge pattern.
At 401Ah it lands just below the L16HC's 420Ah traction rating, which is expected: banks built for renewable storage are optimized differently than banks built for vehicle range, even inside an identical case.
Why choose the US RE L16 XC2
- 401Ah in the proven 903 (L16) case, ready to slot into existing racking
- Plate chemistry tuned for solar/off-grid cycling rather than traction discharge
- Large "L" terminal standard, Small "L" available on request
- A natural pairing with the RE GC2H for mixed-voltage renewable banks
Specifications
| Model | US RE L16 XC2 |
| Voltage | 6V |
| Capacity (20HR) | 401Ah |
| Minutes @75A | 245 |
| Minutes @25A | 915 |
| Length (w/o handles) | 11.875" |
| Width | 7.125" |
| Height | 16.75" |
| Weight | 130 lbs |
| Terminal | Large "L" |
| Case Material | Polypropylene, heat sealed |
| Battery Type | Flooded Lead Acid (FLA) |
If you're speccing a bank of these, confirm rack spacing now — at 130 lbs each, repositioning after delivery is not a one-person job.
