Description

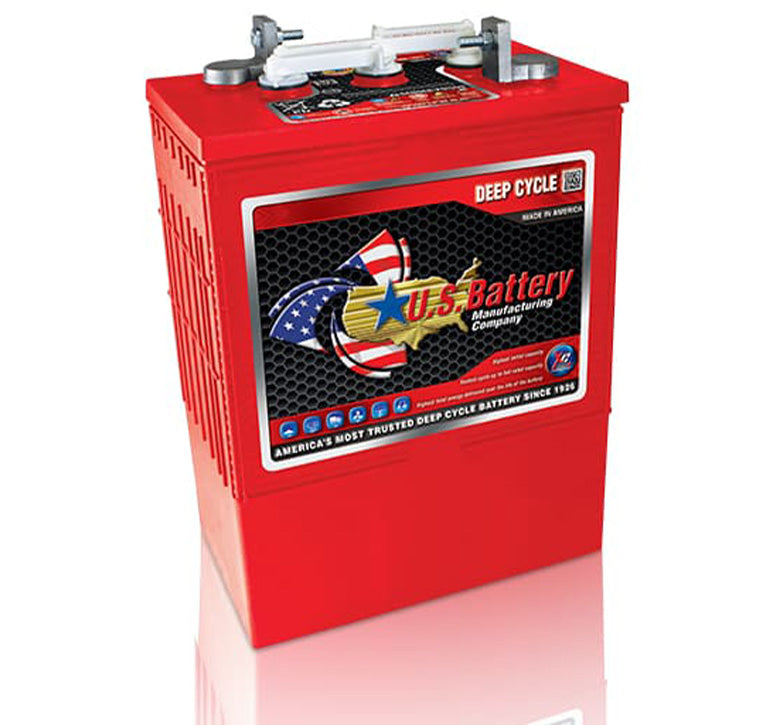

US L16 XC2 is a 6-volt, 385Ah flooded lead-acid deep cycle battery in U.S. Battery's tall 903 (L16) case — the standard-capacity model in the L16 lineup and one of the most widely used batteries in solar/renewable energy banks, aerial lifts, and heavy commercial equipment.
Manufactured in the USA with U.S. Battery's XC2™ paste formulation and Diamond Plate Technology®, the US L16 XC2 is built to cycle up faster and deliver more usable energy across its service life than conventional flooded L16 designs.
Why choose the US L16 XC2
- 385Ah (20-hour rate) capacity — the standard rating in the L16/903-case family
- XC2™ technology for quicker cycle-up and extended battery life
- Large "L" terminal standard, with offset "S", Dual, Small "L", SAE, and UTL options available
- One of the most common L16 batteries for solar and renewable-energy battery banks
Specifications
| Model | US L16 XC2 |
| Voltage | 6V |
| Capacity (20HR) | 385Ah |
| Minutes @75A | 225 |
| Minutes @56A | 322 |
| Length (w/o handles) | 11.875" |
| Width | 7.125" |
| Height | 16.75" |
| Weight | approx. 125 lbs |
| Terminal | Large "L" |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
This is a heavy L16-class battery at roughly 125 lbs — freight shipping and mechanical lifting are recommended. Message us if you're sizing a multi-battery bank and want help with the math.
