Description

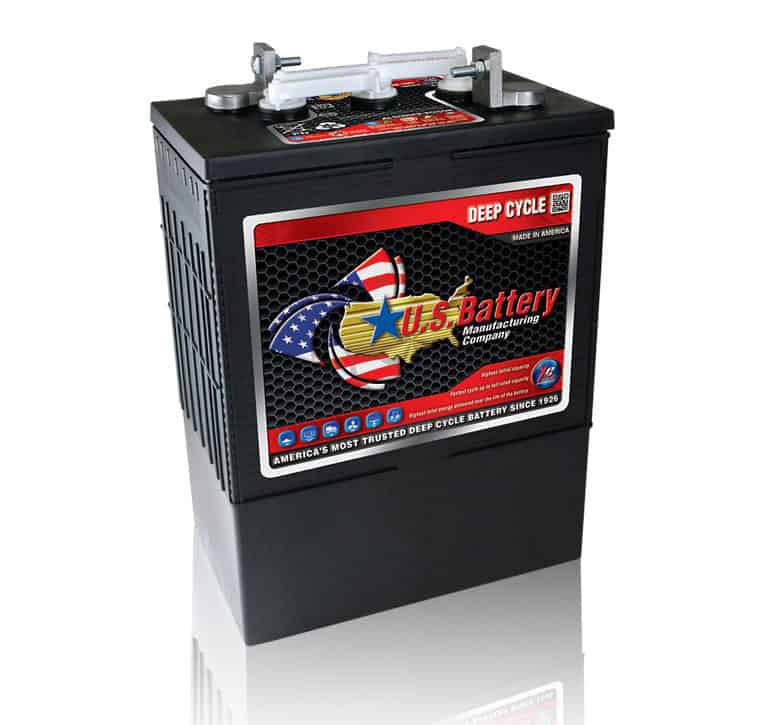

US L16E XC2 is a 6-volt, 360Ah flooded lead-acid deep cycle battery in U.S. Battery's tall 903 (L16) case, the entry-capacity model in the L16 family used across sweeper/scrubbers, aerial lifts, and renewable energy banks.
Hand-built in the USA with U.S. Battery's XC2™ paste formulation and Diamond Plate Technology®, the US L16E XC2 is engineered to cycle up to full capacity quickly and deliver strong total energy across a demanding industrial-duty service life.
Why choose the US L16E XC2
- 360Ah (20-hour rate) capacity in the tall 903/L16 case
- XC2™ formulation for faster break-in and higher lifetime energy delivery
- Large "L" terminal standard, with offset "S", Dual, Small "L", SAE, and UTL options available
- Entry point into the L16 family for teams that don't need the full 420Ah HC rating
Specifications
| Model | US L16E XC2 |
| Voltage | 6V |
| Capacity (20HR) | 360Ah |
| Minutes @75A | 198 |
| Minutes @25A | 795 |
| Length (w/o handles) | 11.875" |
| Width | 7.125" |
| Height | 16.75" |
| Weight | approx. 118 lbs |
| Terminal | Large "L" |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
At roughly 118 lbs this is a large L16-format battery — plan for mechanical lifting equipment or a multi-person crew, and let us know if you need help confirming rack or bank sizing.
