Description

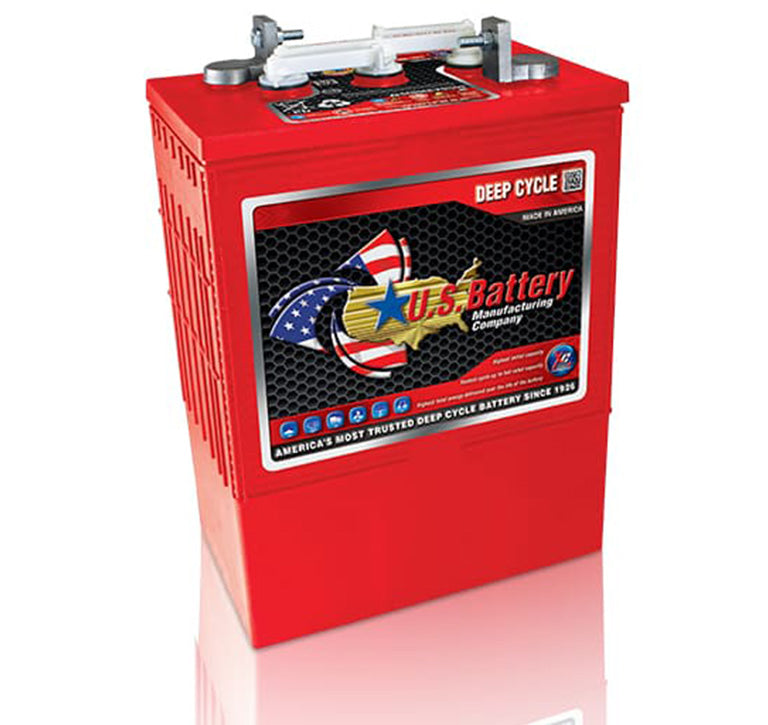

US L16HC XC2 is a 6-volt, 420Ah high-capacity flooded lead-acid deep cycle battery in U.S. Battery's tall 903 (L16) case — the top-capacity model in the L16 family, built for the most demanding aerial lift, sweeper/scrubber, and renewable-energy applications.
Built in the USA with U.S. Battery's XC2™ paste formulation and Diamond Plate Technology®, the "HC" designation packs maximum plate area into the L16 case for the longest runtime between charges in this case size.
Why choose the US L16HC XC2
- 420Ah (20-hour rate) capacity — the highest rating in the L16/903-case flooded family
- XC2™ formulation for faster cycle-up and maximum lifetime energy delivery
- Large "L" terminal standard, with offset "S", Dual, Small "L", SAE, and UTL options available
- A strong match for large renewable-energy banks needing maximum per-cell capacity
Specifications
| Model | US L16HC XC2 |
| Voltage | 6V |
| Capacity (20HR) | 420Ah |
| Minutes @75A | 250 |
| Minutes @56A | 358 |
| Length (w/o handles) | 11.875" |
| Width | 7.125" |
| Height | 16.75" |
| Weight | approx. 133 lbs |
| Terminal | Large "L" |
| Case Material | Polypropylene, heat-sealed |
| Battery Type | Flooded Lead Acid (FLA) |
Our highest-capacity L16-format flooded battery at roughly 133 lbs — freight and lift-gate delivery may apply. We recommend confirming your rack's weight rating before ordering multiples.
